Walker

A planar bipedal walker. Three variants share the body and dynamics; they differ only in the target locomotion speed baked into the reward — a stationary stand, a walking gait, and a running gait.

WalkerStand

Property	Value
Canonical ID	mjx/walker_stand-v0
Action space	Box(-1.0, 1.0, (6,), float32)
Observation space	Box(-inf, inf, (24,), float32)
Episode length	1000
Config	{"ctrl_dt": 0.025, "sim_dt": 0.0025, "naconmax": 50_000, "njmax": 100}

Description

The walker has to stand upright and stationary, keeping its torso above a minimum standing height. Without a forward-velocity term, the agent isn't pushed to move — it just has to keep the body tall and aligned vertically.

Rewards

Uses a dense reward that combines a standing-height tolerance with torso-uprightness, weighted 3:1 in favour of standing height:

standing      = tolerance(
    torso_height,
    bounds=(STAND_HEIGHT, inf),
    margin=STAND_HEIGHT / 2,
)
upright       = (1 + torso_z_up) / 2
reward = (3 * standing + upright) / 4

The two terms each capture a separate concern:

• standing — the smooth tolerance indicator on torso height: 1.0 once the torso clears STAND_HEIGHT, decaying smoothly as it sinks toward STAND_HEIGHT / 2.
• upright — the dot product of the torso's up-axis with world-z, normalised to [0, 1]. 1.0 when upright, 0.5 on its side, 0.0 upside-down.

Starting state

obs = [-0.8415 -0.5403 -0.7934  0.6087 -0.9945  0.1048 -0.9205 -0.3908
       -0.8747 -0.4847  0.911  -0.4125  0.4919 -0.8707 -0.8415  0.
        0.      0.      0.      0.      0.      0.      0.      0.    ]

(joint orientations and positions followed by joint velocities — body initialised in a default posture with zero velocity.)

Termination

Episode ends when step >= max_steps (default 1000). No early termination on falling.

Usage

import envrax
env = envrax.make("mjx/walker_stand-v0")

Reference

Upstream: mujoco_playground/_src/dm_control_suite/walker.py.

---

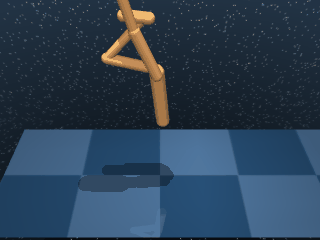

WalkerWalk

Property	Value
Canonical ID	mjx/walker_walk-v0
Action space	Box(-1.0, 1.0, (6,), float32)
Observation space	Box(-inf, inf, (24,), float32)
Episode length	1000
Config	{"ctrl_dt": 0.025, "sim_dt": 0.0025, "naconmax": 50_000, "njmax": 100}

Description

The same body as WalkerStand, now walking forward at a target horizontal speed. The agent has to keep the torso tall and roughly vertical while moving — speed alone isn't enough if the walker collapses, and a stable stand isn't enough if it doesn't make progress.

Rewards

Uses a dense reward that multiplies WalkerStand's stand reward by a forward-velocity term:

standing      = tolerance(torso_height, bounds=(STAND_HEIGHT, inf), margin=STAND_HEIGHT / 2)
upright       = (1 + torso_z_up) / 2
stand_reward  = (3 * standing + upright) / 4
move_reward   = tolerance(
    horizontal_velocity,
    bounds=(WALK_SPEED, inf),
    margin=WALK_SPEED / 2,
    value_at_margin=0.5,
    sigmoid="linear",
)
reward = stand_reward * (5 * move_reward + 1) / 6

Three components combined so neither tall-but-still nor fast-but-fallen is enough:

• standing — tolerance on torso height: 1.0 once the torso clears STAND_HEIGHT, decaying smoothly as it sinks.
• upright — torso vertical alignment normalised to [0, 1].
• move_reward — linear ramp from 0.5 (at half target speed) to 1.0 (at WALK_SPEED or above), then rescaled into [0.17, 1.0] via (5 * move_reward + 1) / 6 so the stand reward stays the dominant factor.

Starting state

obs = [-0.8415 -0.5403 -0.7934  0.6087 -0.9945  0.1048 -0.9205 -0.3908
       -0.8747 -0.4847  0.911  -0.4125  0.4919 -0.8707 -0.8415  0.
        0.      0.      0.      0.      0.      0.      0.      0.    ]

Termination

Episode ends when step >= max_steps (default 1000). No early termination on falling.

Usage

import envrax
env = envrax.make("mjx/walker_walk-v0")

Reference

Upstream: mujoco_playground/_src/dm_control_suite/walker.py.

---

WalkerRun

Property	Value
Canonical ID	mjx/walker_run-v0
Action space	Box(-1.0, 1.0, (6,), float32)
Observation space	Box(-inf, inf, (24,), float32)
Episode length	1000
Config	{"ctrl_dt": 0.025, "sim_dt": 0.0025, "naconmax": 50_000, "njmax": 100}

Description

The same body as WalkerStand, now running forward at a higher target horizontal speed than WalkerWalk. The faster cadence forces a more dynamic gait that briefly leaves the ground, which is qualitatively harder than walking despite the identical body — most policies that work for the walking variant don't transfer cleanly to running.

Rewards

Uses the same dense reward shape as WalkerWalk, with RUN_SPEED replacing WALK_SPEED:

standing      = tolerance(torso_height, bounds=(STAND_HEIGHT, inf), margin=STAND_HEIGHT / 2)
upright       = (1 + torso_z_up) / 2
stand_reward  = (3 * standing + upright) / 4
move_reward   = tolerance(
    horizontal_velocity,
    bounds=(RUN_SPEED, inf),
    margin=RUN_SPEED / 2,
    value_at_margin=0.5,
    sigmoid="linear",
)
reward = stand_reward * (5 * move_reward + 1) / 6

Same three components as WalkerWalk, just at a higher target speed:

• standing — tolerance on torso height: 1.0 once the torso clears STAND_HEIGHT, decaying smoothly as it sinks.
• upright — torso vertical alignment normalised to [0, 1].
• move_reward — linear ramp from 0.5 (at half target speed) to 1.0 (at RUN_SPEED or above), then rescaled into [0.17, 1.0] via (5 * move_reward + 1) / 6 so the stand reward stays the dominant factor.

Starting state

obs = [-0.8415 -0.5403 -0.7934  0.6087 -0.9945  0.1048 -0.9205 -0.3908
       -0.8747 -0.4847  0.911  -0.4125  0.4919 -0.8707 -0.8415  0.
        0.      0.      0.      0.      0.      0.      0.      0.    ]

Termination

Episode ends when step >= max_steps (default 1000). No early termination on falling.

Usage

import envrax
env = envrax.make("mjx/walker_run-v0")

Reference

Upstream: mujoco_playground/_src/dm_control_suite/walker.py.
