Acrobot

This family focuses on two-link underactuated pendulum's mounted on a fixed pivot. The agent torques the second joint only, where the first joint swings passively.

All Acrobot variants share the same body, dynamics, and termination rule; they only differ via the reward function.

AcrobotSwingup

Property	Value
Canonical ID	mjx/acrobot_swingup-v0
Action space	Box(-1.0, 1.0, (1,), float32)
Observation space	Box(-inf, inf, (6,), float32)
Episode length	1000
Config	{"ctrl_dt": 0.01, "sim_dt": 0.01, "naconmax": 0, "njmax": 0}

Description

The pendulum starts at rest, hanging straight down. The agent must swing the tip up to a target position. Only the second joint is actuated, so the tip can't be lifted directly — momentum has to build up through the underactuated dynamics.

Rewards

Uses a dense reward with a smooth tolerance indicator over tip-to-target distance:

reward = tolerance(
    distance(tip, target),
    bounds=(0.0, big_target_radius),
    margin=big_target_radius,
)

tolerance is DM Control's smooth indicator. It returns:

• 1.0 while the input sits inside bounds.
• A smooth decay to value_at_margin as the input moves out to margin.
• 0.0 past that.

Starting state

obs = [-0.5403  0.2908 -0.8415 -0.9568  0.      0.    ]

(orientations of the two links followed by their angular velocities; both joints at rest.)

Termination

Episode ends when step >= max_steps (default 1000). No early termination.

Usage

import envrax
env = envrax.make("mjx/acrobot_swingup-v0")

Reference

Upstream: mujoco_playground/_src/dm_control_suite/acrobot.py.

---

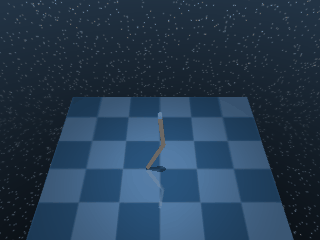

AcrobotSwingupSparse

Property	Value
Canonical ID	mjx/acrobot_swingup_sparse-v0
Action space	Box(-1.0, 1.0, (1,), float32)
Observation space	Box(-inf, inf, (6,), float32)
Episode length	1000
Config	{"ctrl_dt": 0.01, "sim_dt": 0.01, "naconmax": 0, "njmax": 0}

Description

The pendulum starts at rest, hanging straight down. The agent must swing the tip up to a target position via the underactuated dynamics — same body, dynamics, and starting state as AcrobotSwingup, but with a tighter target tolerance.

Rewards

Uses a sparse reward with a tolerance indicator over tip-to-target distance:

reward = tolerance(
    distance(tip, target),
    bounds=(0.0, small_target_radius),
    margin=0.0,
)

With margin=0.0 the smooth decay collapses to a step. The indicator becomes binary:

• 1.0 when the tip is within small_target_radius of the target.
• 0.0 otherwise.

Starting state

obs = [-0.5403  0.2908 -0.8415 -0.9568  0.      0.    ]

Termination

Episode ends when step >= max_steps (default 1000). No early termination.

Usage

import envrax
env = envrax.make("mjx/acrobot_swingup_sparse-v0")

Reference

Upstream: mujoco_playground/_src/dm_control_suite/acrobot.py.
