Reacher

A two-link planar arm reaching toward a randomised target position. Two variants share the body and dynamics; they differ only in the target's size, which controls how hard the sparse reward is to discover.

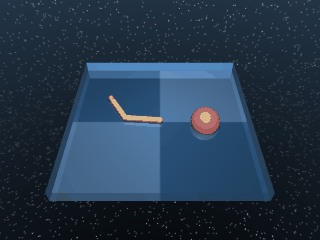

ReacherEasy

Property	Value
Canonical ID	mjx/reacher_easy-v0
Action space	Box(-1.0, 1.0, (2,), float32)
Observation space	Box(-inf, inf, (6,), float32)
Episode length	1000
Config	{"ctrl_dt": 0.02, "sim_dt": 0.005, "naconmax": 0, "njmax": 0}

Description

The arm's fingertip must reach a randomised target somewhere inside the workspace. The "easy" variant uses a generous target radius (reacher.BIG_TARGET), so even a fairly random policy will land inside the target band often enough to bootstrap learning.

Rewards

Uses a sparse reward built from tolerance over fingertip-to-target distance, with BIG_TARGET as the upper bound and no margin (so it collapses to a step):

reward = tolerance(
    distance(finger, target),
    bounds=(0, BIG_TARGET),
)

With the default zero margin, the indicator becomes binary:

• 1.0 when the fingertip is within BIG_TARGET of the target.
• 0.0 otherwise.

Starting state

obs = [-2.5709  1.4054  0.0537  0.1751  0.      0.    ]

(joint angles followed by the fingertip-to-target offset and joint velocities — both joints initialised at random angles, target randomised inside the workspace.)

Termination

Episode ends when step >= max_steps (default 1000). No early termination.

Usage

import envrax
env = envrax.make("mjx/reacher_easy-v0")

Reference

Upstream: mujoco_playground/_src/dm_control_suite/reacher.py.

---

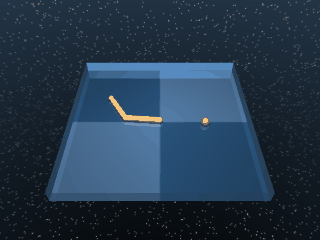

ReacherHard

Property	Value
Canonical ID	mjx/reacher_hard-v0
Action space	Box(-1.0, 1.0, (2,), float32)
Observation space	Box(-inf, inf, (6,), float32)
Episode length	1000
Config	{"ctrl_dt": 0.02, "sim_dt": 0.005, "naconmax": 0, "njmax": 0}

Description

Same arm and dynamics as ReacherEasy, but the target shrinks to reacher.SMALL_TARGET. The smaller catch radius means random exploration almost never lands inside it — algorithms that can't direct exploration get nowhere on this variant, which makes it a useful stress test for learned exploration bonuses or curiosity-style methods.

Rewards

Uses a sparse reward built from tolerance over fingertip-to-target distance, with the smaller SMALL_TARGET upper bound:

reward = tolerance(
    distance(finger, target),
    bounds=(0, SMALL_TARGET),
)

With the default zero margin, the indicator becomes binary:

• 1.0 when the fingertip is within SMALL_TARGET of the target.
• 0.0 otherwise.

Starting state

obs = [-2.5709  1.4054  0.0537  0.1751  0.      0.    ]

Termination

Episode ends when step >= max_steps (default 1000). No early termination.

Usage

import envrax
env = envrax.make("mjx/reacher_hard-v0")

Reference

Upstream: mujoco_playground/_src/dm_control_suite/reacher.py.
