Ball in Cup

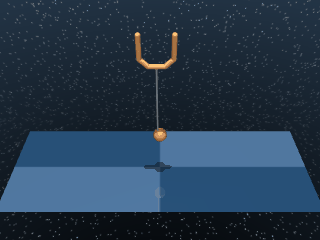

A planar ball-and-cup task: a ball hangs from a tether attached to a movable cup. The agent actuates the cup in 2D and must catch the ball inside.

BallInCup

Property	Value
Canonical ID	mjx/ball_in_cup-v0
Action space	Box(-1.0, 1.0, (2,), float32)
Observation space	Box(-inf, inf, (8,), float32)
Episode length	1000
Config	{"ctrl_dt": 0.02, "sim_dt": 0.002, "naconmax": 10_000, "njmax": 25}

Description

The cup moves freely in the 2D plane while the ball swings on its tether. The task succeeds the moment the ball is brought inside the cup's catch region. The tether dynamics make this a coordination problem — yanking the cup directly toward the ball usually misses on the first pass and overshoots on the second.

Rewards

Uses a sparse reward that fires only when the ball sits inside the cup's catch region in both x and z:

ball_to_target = abs(target_xz - ball_xz)
inside = (ball_to_target < target_size - ball_size).astype(float)
reward = inside.prod()  # AND across x and z

The product over the two axes acts as a logical AND. The reward is binary:

• 1.0 when the ball is inside the catch region in both x and z.
• 0.0 if either axis is outside.

Starting state

obs = [0. 0. 0. 0. 0. 0. 0. 0.]

(qpos and qvel concatenated — cup at the origin, ball hanging at rest.)

Termination

Episode ends when step >= max_steps (default 1000). No early termination.

Usage

import envrax
env = envrax.make("mjx/ball_in_cup-v0")

Reference

Upstream: mujoco_playground/_src/dm_control_suite/ball_in_cup.py.
