Humanoid

A 3D 21-DoF humanoid with full upper- and lower-body actuation. Three variants share the body and dynamics; they differ only in the target locomotion speed baked into the reward — a stationary stand, a walking gait, and a running gait.

HumanoidStand

Property	Value
Canonical ID	mjx/humanoid_stand-v0
Action space	Box(-1.0, 1.0, (21,), float32)
Observation space	Box(-inf, inf, (67,), float32)
Episode length	1000
Config	{"ctrl_dt": 0.025, "sim_dt": 0.005, "naconmax": 200_000, "njmax": 250}

Description

The humanoid has to stand upright and stationary, keeping its head above a minimum standing height. With 21 actuators and full body articulation, the challenge isn't holding a pose — it's coordinating the full kinematic chain to stay balanced while keeping horizontal velocity at zero.

Rewards

Uses a dense reward that multiplies three terms — a stand reward, a "don't move" reward, and a small-control penalty:

standing       = tolerance(head_height, bounds=(STAND_HEIGHT, inf), margin=STAND_HEIGHT / 4)
upright        = tolerance(torso_upright, bounds=(0.9, inf), margin=1.9, sigmoid="linear", value_at_margin=0)
stand_reward   = standing * upright
dont_move      = tolerance(horizontal_velocity, margin=2).mean()
small_control  = (4 + tolerance(action, margin=1, sigmoid="quadratic").mean()) / 5
reward = stand_reward * dont_move * small_control

Each component captures a separate concern:

• standing — tolerance on head height: 1.0 once the head clears STAND_HEIGHT, decaying smoothly as it sinks.
• upright — tolerance on torso vertical alignment: 1.0 once torso_upright >= 0.9, ramping linearly to 0.0 as the torso tilts toward horizontal.
• dont_move — penalises horizontal centre-of-mass velocity; 1.0 near zero, decays away from rest.
• small_control — quadratic action penalty rescaled into [0.8, 1.0], so it lightly modulates the primary terms rather than dominating.

Starting state

obs = [ 0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.      0.      0.      1.69    0.36    0.17
        0.06   -0.0027  0.09   -1.258   0.36   -0.17    0.06   -0.0027
       -0.09   -1.258   0.      0.      1.      0.      0.      0.
        0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.    ]

(67-dim observation: joint positions, joint velocities, end-effector positions, sensor readings — humanoid initialised in a default standing posture.)

Termination

Episode ends when step >= max_steps (default 1000). No early termination on falling.

Usage

import envrax
env = envrax.make("mjx/humanoid_stand-v0")

Reference

Upstream: mujoco_playground/_src/dm_control_suite/humanoid.py.

---

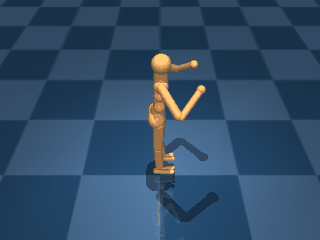

HumanoidWalk

Property	Value
Canonical ID	mjx/humanoid_walk-v0
Action space	Box(-1.0, 1.0, (21,), float32)
Observation space	Box(-inf, inf, (67,), float32)
Episode length	1000
Config	{"ctrl_dt": 0.025, "sim_dt": 0.005, "naconmax": 200_000, "njmax": 250}

Description

The same body and dynamics as HumanoidStand, now walking forward at a target horizontal speed. Standing stably is no longer enough — the agent has to coordinate the full kinematic chain into a forward gait while still keeping the head above the standing height and the torso roughly vertical.

Rewards

Uses the same dense reward shape as HumanoidStand, with the dont_move term replaced by a move_reward:

standing       = tolerance(head_height, bounds=(STAND_HEIGHT, inf), margin=STAND_HEIGHT / 4)
upright        = tolerance(torso_upright, bounds=(0.9, inf), margin=1.9, sigmoid="linear", value_at_margin=0)
stand_reward   = standing * upright
move           = tolerance(
    norm(horizontal_velocity),
    bounds=(WALK_SPEED, inf),
    margin=WALK_SPEED,
    value_at_margin=0,
    sigmoid="linear",
)
move_reward    = (5 * move + 1) / 6
small_control  = (4 + tolerance(action, margin=1, sigmoid="quadratic").mean()) / 5
reward = stand_reward * move_reward * small_control

Each component captures a separate concern:

• standing — tolerance on head height: 1.0 once the head clears STAND_HEIGHT, decaying smoothly as it sinks.
• upright — tolerance on torso vertical alignment: 1.0 once torso_upright >= 0.9, ramping linearly down as the torso tilts.
• move_reward — linear ramp from 0.0 (at zero speed) to 1.0 (at WALK_SPEED or above), then rescaled into [0.17, 1.0] so the gradient survives even slow movement.
• small_control — quadratic action penalty rescaled into [0.8, 1.0], lightly modulating the primary terms rather than dominating.

Starting state

obs = [ 0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.      0.      0.      1.69    0.36    0.17
        0.06   -0.0027  0.09   -1.258   0.36   -0.17    0.06   -0.0027
       -0.09   -1.258   0.      0.      1.      0.      0.      0.
        0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.    ]

Termination

Episode ends when step >= max_steps (default 1000). No early termination on falling.

Usage

import envrax
env = envrax.make("mjx/humanoid_walk-v0")

Reference

Upstream: mujoco_playground/_src/dm_control_suite/humanoid.py.

---

HumanoidRun

Property	Value
Canonical ID	mjx/humanoid_run-v0
Action space	Box(-1.0, 1.0, (21,), float32)
Observation space	Box(-inf, inf, (67,), float32)
Episode length	1000
Config	{"ctrl_dt": 0.025, "sim_dt": 0.005, "naconmax": 200_000, "njmax": 250}

Description

The same body and dynamics as HumanoidStand, now running forward. Only the target speed in the move term changes from WALK_SPEED to RUN_SPEED, but the consequence is qualitatively different — at running speeds the humanoid has to commit to a more aggressive gait that briefly leaves the ground, which is noticeably harder than the walking variant despite the identical body.

Rewards

Uses the same dense reward shape as HumanoidWalk, with RUN_SPEED replacing WALK_SPEED:

standing       = tolerance(head_height, bounds=(STAND_HEIGHT, inf), margin=STAND_HEIGHT / 4)
upright        = tolerance(torso_upright, bounds=(0.9, inf), margin=1.9, sigmoid="linear", value_at_margin=0)
stand_reward   = standing * upright
move           = tolerance(
    norm(horizontal_velocity),
    bounds=(RUN_SPEED, inf),
    margin=RUN_SPEED,
    value_at_margin=0,
    sigmoid="linear",
)
move_reward    = (5 * move + 1) / 6
small_control  = (4 + tolerance(action, margin=1, sigmoid="quadratic").mean()) / 5
reward = stand_reward * move_reward * small_control

Each component captures a separate concern:

• standing — tolerance on head height: 1.0 once the head clears STAND_HEIGHT, decaying smoothly as it sinks.
• upright — tolerance on torso vertical alignment: 1.0 once torso_upright >= 0.9, ramping linearly down as the torso tilts.
• move_reward — linear ramp from 0.0 (at zero speed) to 1.0 (at RUN_SPEED or above), rescaled into [0.17, 1.0] so the gradient survives even slow movement.
• small_control — quadratic action penalty rescaled into [0.8, 1.0], lightly modulating the primary terms rather than dominating.

Starting state

obs = [ 0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.      0.      0.      1.69    0.36    0.17
        0.06   -0.0027  0.09   -1.258   0.36   -0.17    0.06   -0.0027
       -0.09   -1.258   0.      0.      1.      0.      0.      0.
        0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.      0.      0.      0.      0.      0.
        0.      0.      0.    ]

Termination

Episode ends when step >= max_steps (default 1000). No early termination on falling.

Usage

import envrax
env = envrax.make("mjx/humanoid_run-v0")

Reference

Upstream: mujoco_playground/_src/dm_control_suite/humanoid.py.
